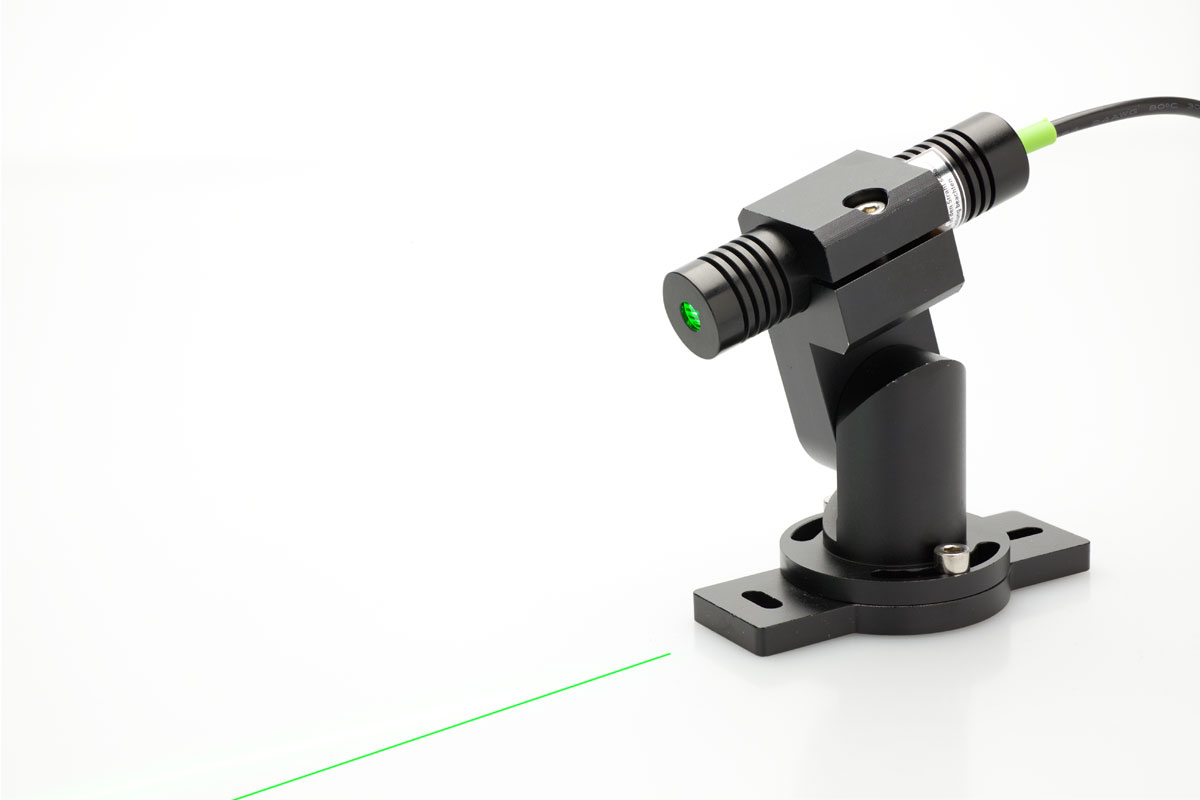

Ready-for-use line laser, complete set, with very high visibility for integration into machines or any other industrial environment.
MediaLas line laser complete sets are well-thought-out and powerful all-rounders. Our compact system enables a multitude of module variants, in order to always achieve the optimal results required each day in the production area. Alongside small dimensions, the primary aspect to emphasise is the high level of reliability which it achieves over a long service life.
Focus is set at the factory for infinity. These line lasers are recommended for distances of 2m or more.
Electrical connection
230V Version: The 230V version includes a cable with DC connector, and fitting plug type power supply.

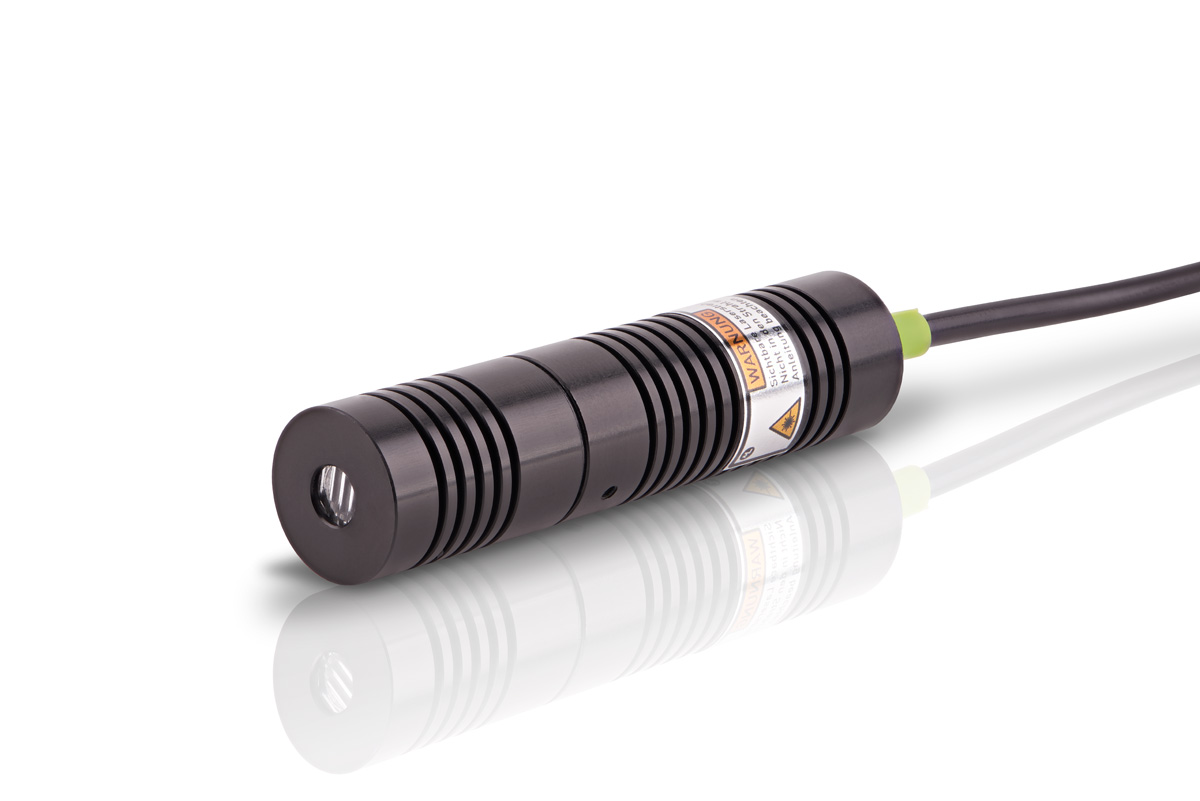

12 - 25V version: The laser modules are equipped with a flexible connecting cable. A small adaptor electronics is shrinked into the cable. Connecting ends are equipped with wire termination, to connect to any kind of power supply or distributing bus. A reverse voltage protection is mandatory.
Technical details:
| Laser power: |
75mW |
| Wavelength/Color: |
532nm GREEN |
| Projection angle: |
110 deg |
| Line length: |
3m @ 1m distance, 6m @ 2m distance, ... |
| Divergence: |
typ. <1mrad |
| Power supply: |
24VDC / 100-240VAC |
| Length of wires: |
Ca. 1 m |
| Laser class: |
Class 1/2 |
| IP class: |
IP40 |
| Dimensions Laser Module: |
18 x 75mm |
| Temperature range |
+10°C - +30°C |
| Operating time: |
8-12h per day |
| Typical lifetime: |
typ. > 8.000 h |
VISIBILITY AND BRIGHTNESS
The brightness of the laser line is determined by many factors. As a principle:
- Line length: The longer the line, the lower the brightness, as the light output is distributed across a larger surface area
- Laser colour: Green is significantly more effective than red or blue
- Operating surface: The darker and more matte the surface, the dimmer the light appears
- Ambient brightness: The brighter the ambient light, the dimmer the laser line appears. This is determined by the human eye, which reduces its sensitivity to suit the level of ambient brightness. In direct sunlight, it is very difficult to even recognise a laser line, as the retina is already saturated.
- Laser output: The higher the output of the laser, the brighter the laser line appears
LASER SAFETY
You will receive further, detailed information with each delivery of our line laser modules and associated equipment. We are at your disposal and would be happy to advise in this matter.
Note
- Pay attention to the class of the laser.
- Pay attention to the reduced temperature range.
- Our Design Department is always at your disposal to discuss customer-specific requirements.
We are at your disposal to respond to any questions about classification in your environment.
